Starship's Thermal Protection System (TPS) is a critical component of the Starship vehicle, designed to protect it from the intense heat generated during atmospheric reentry. The successful development of a robust, lightweight, and rapidly reusable TPS is fundamental to achieving SpaceX's goal of making Starship the first fully reusable orbital launch vehicle and for colonizing Mars. SpaceX intends to use the same heat shield design to fulfill both of these requirements.
Unlike the Carbon-Carbon composite used on the Space Shuttle, SpaceX has opted for a system primarily composed of thousands of standardized hexagonal ceramic tiles. This approach is intended to simplify manufacturing, reduce maintenance time, and lower overall system cost.
Overview and Design Philosophy[]
The Starship TPS is designed to withstand reentry temperatures that can exceed 1,400 °C (2,550 °F). The system's design philosophy prioritizes mass production, ease of installation, and rapid inspection and replacement.
The primary method of thermal protection is a large heat shield on the windward side of the vehicle, which faces the most extreme temperatures. This shield is composed of thousands of black ceramic tiles. The leeward side of the vehicle, which experiences significantly less heating, is comprised of bare 300-series stainless steel.
Key design features include:
- Standardized Hexagonal Tiles: The use of a uniform hexagonal shape allows for mass production and creates a tessellating pattern that covers the curved surface of the vehicle with minimal unique parts.
- In-House Manufacturing: SpaceX produces the tiles at their 'bakery' in Roberts Road
- Mechanical Attachment: Tiles are not bonded directly to the hull. Instead, they are mounted on studs welded to the airframe, allowing for thermal expansion and contraction and simplifying replacement.
Tile System[]

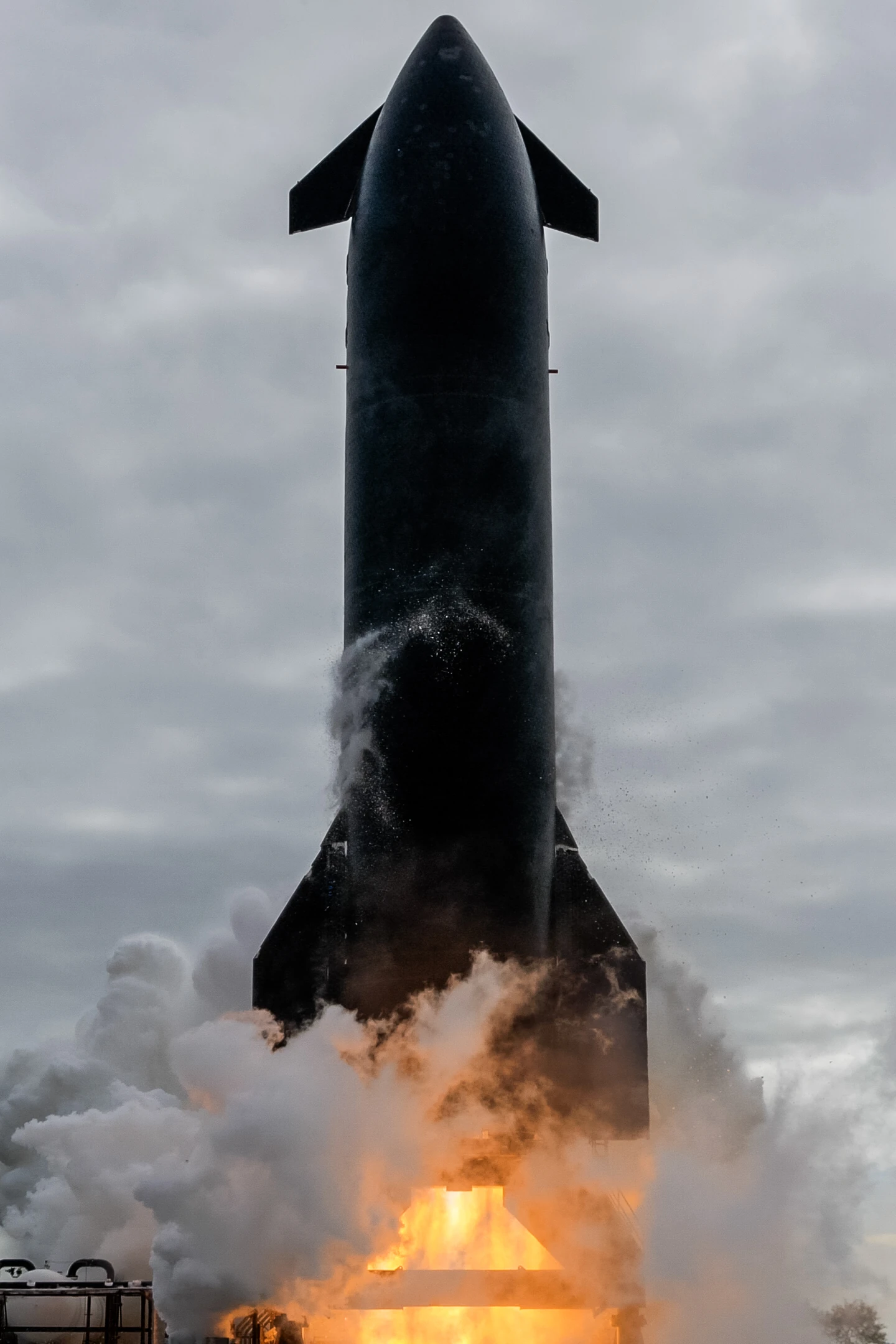

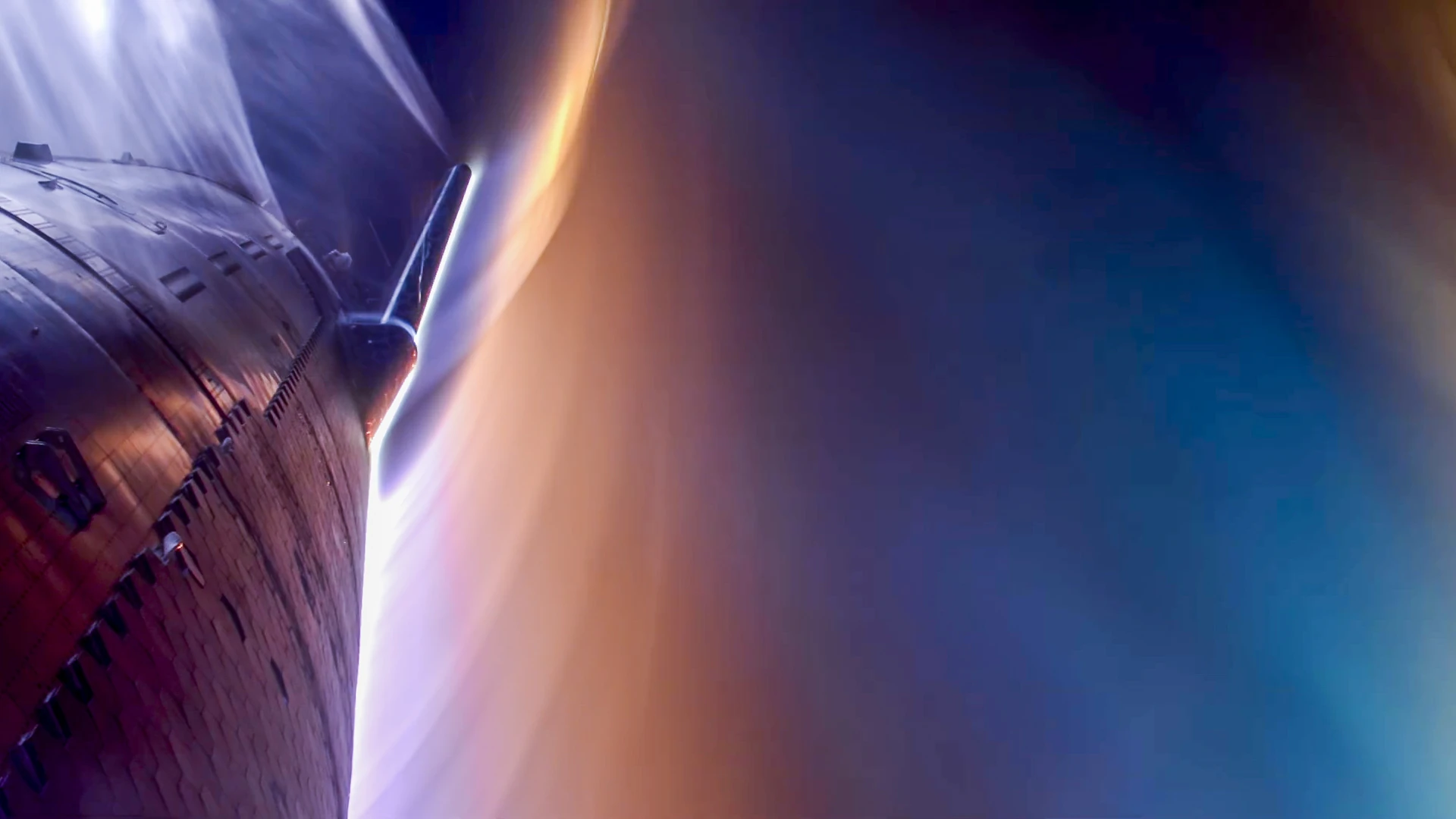

The most visible component of the TPS is the field of black hexagonal tiles covering the windward side of the Starship upper stage.
Composition and Manufacturing[]
While the exact composition is a trade secret, the tiles are understood to be a form of toughened silica ceramic. Elon Musk has referred to them as "Toughened Unipiece Fibrous Reusable Oxidation-Resistant Ceramic" (TUFROC) derivative. They are designed to be highly porous and lightweight, with a black coating that helps to radiate heat away from the vehicle.
The manufacturing process is highly automated. The raw material is placed into hexagonal molds, fired in large ovens, and then processed by robots that apply the coating and prepare them for installation.
Attachment System[]
The tiles are not glued or bonded to the vehicle's hull, which was a significant maintenance issue for the Space Shuttle. Instead, each tile is attached via a single, centrally located metal stud.
- A stud is welded to the stainless steel hull.
- A flexible, high-temperature fabric blanket (often referred to as a "felt" or "blankie") is placed over the stud and against the hull. This provides an additional layer of insulation and a cushion for the tile.
- The tile, which has a corresponding hole, is placed over the stud.
- A self-locking "acorn" nut is then screwed onto the stud, holding the tile in place with a specific torque.
This mechanical system allows for slight movement and prevents stress from building up as the stainless steel hull and the ceramic tiles expand and contract at different rates. However glue is still sometimes used for repairs or around joins.
Layout and Gaps[]
The tiles are arranged in a tessellating hexagonal pattern. Small, deliberate gaps are left between each tile. These gaps serve a critical purpose: they allow the tiles to expand when heated without pressing against each other, which could cause them to crack or pop off. The underlying insulated blanket protects the hull from any hot plasma that might penetrate these gaps.
Leeward Side[]
The leeward side of the vehicle is shielded from the most intense reentry plasma by the vehicle's angle of attack. As such, it does not require tiles. The bare 300-series stainless steel hull is sufficient to handle the lower heat loads on this side.

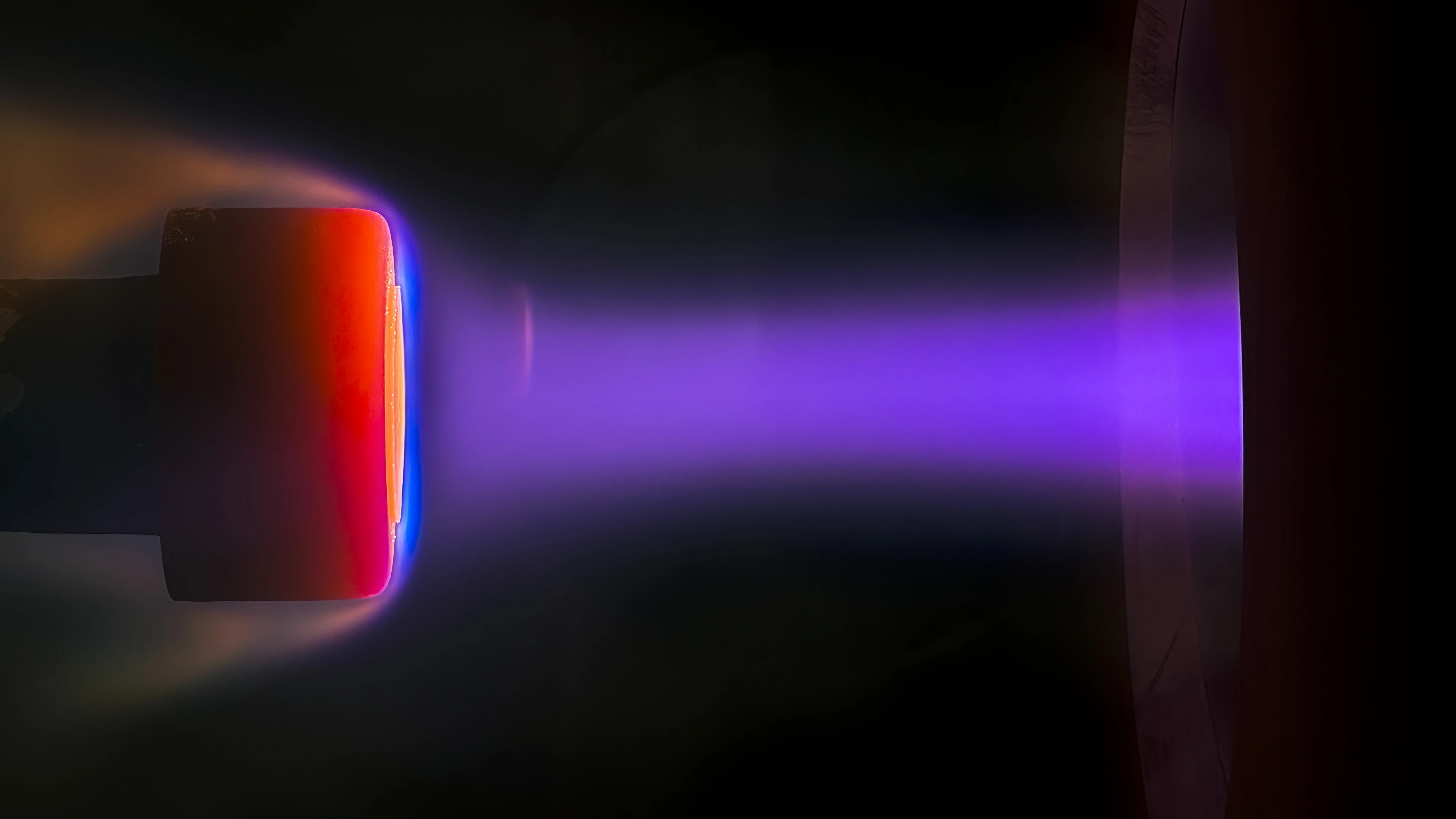

Testing and Iteration[]
The TPS has been a key focus of Starship's iterative test program.
- Early Prototypes: Early high-altitude prototypes like SN8 through SN11 and SN15 flew with only a small number of test tiles.
- Orbital Flight Tests: Starting with the first integrated flight test, Starships have been outfitted with a nearly full complement of heat shield tiles. Each flight has provided crucial data on the system's performance.
- Tile Loss: During early orbital test flights, some tile loss was observed, particularly around the flap hinges and other complex interfaces. SpaceX has since introduced design changes, including new tile shapes, improved gap-filler materials, and refined installation procedures to mitigate these issues.
